Aluminum Alloy Cable Tray

1. Product Overview

Aluminum alloy cable tray is integrally extruded from premium 6063-T5 / 6061-T6 / 5052 aluminum alloy. It is a lightweight anti-corrosion cable support system. Unlike steel trays, it requires no galvanizing or paint coating, as a dense natural aluminum oxide film forms on its surface for permanent rust protection. Available in ladder, perforated tray, solid trough and long span types, it widely replaces carbon steel trays for outdoor, coastal, high-rise, marine and data center wiring, balancing light weight, high mechanical strength and long-term corrosion resistance.

2. Main Materials & Surface Treatment

1. 6063-T5 Aluminum Alloy (General Purpose)
Cost-effective, good ductility and easy bending. Suitable for office buildings, factories and slightly humid outdoor areas, normally finished with anodizing for wear and corrosion resistance.
2. 6061-T6 Aluminum Alloy (Heavy-Duty Long Span)
Higher tensile strength. Thickened extruded profiles support 3–6m unsupported spans, ideal for exhibition centers, utility tunnels and photovoltaic power stations.
3. 5052 Aluminum Alloy (Marine Grade)
Superior resistance to chloride ions and seawater salt spray, designed for docks, ships and offshore wind power projects.
4. Surface Finishes: Natural extruded finish, anodizing, electrophoretic coloring; no risk of coating peeling off.

3. Four Main Structural Types

1. Aluminum Ladder Cable Tray
Hollow rung design, ultra-lightweight with optimal heat dissipation. Suitable for large-section high-voltage cables, high-temperature workshops and long-distance overhead installation.
2. Aluminum Perforated Cable Tray
Semi-closed base with uniform heat dissipation holes, balancing load bearing and heat dissipation. Widely used for power cables in factories and weak current wiring in data rooms.

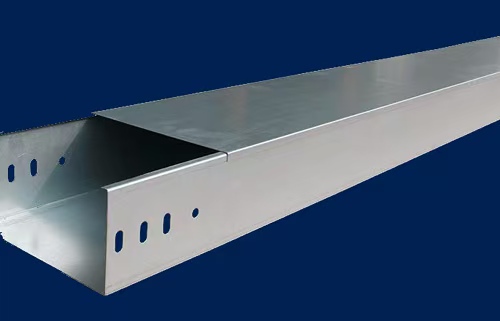

3. Aluminum Solid Cable Trough
Fully enclosed with matching covers, dust-proof, anti-electromagnetic interference and rodent-proof. Perfect for precision signal wires, optical fibers and clean workshops.
4. Aluminum Long Span Cable Tray
Reinforced thick extrusions reduce the quantity of supports, applicable to large factories without ceiling and municipal utility tunnels.

4. Core Product Advantages

1. Ultra-lightweight to reduce structural load
The weight is only 1/3 of carbon steel tray and 1/2.9 of stainless steel tray with identical dimensions. It greatly cuts load on ceiling and high-rise structures. Support spacing can be extended from 1.5m to 2–3m to save bracket cost and lifting labor; single worker can handle installation to shorten construction period by 30%.
2. Natural anti-corrosion with zero maintenance
Self-forming passivation film isolates moisture and mild acid & alkali. Service life reaches 15–20 years in general outdoor environments, no regular rust removal or repainting required, lowering total life-cycle cost compared to galvanized steel trays.
3. Non-magnetic & spark-free for high safety
Non-magnetic material avoids eddy current overheating; non-sparking property fits oil & gas plants, dust explosion-proof zones and precision equipment rooms to eliminate electromagnetic interference.
4. Excellent heat dissipation
High thermal conductivity of aluminum, combined with perforated / hollow structure, quickly releases cable heat to slow insulation aging and reduce power loss.
5. Elegant appearance for commercial projects
Matte metallic texture, customizable silver / bronze anodized colors without extra coating, preferred for office towers, airports and exhibition venues with strict aesthetic requirements.
6. Anti-vibration & seismic performance
Elastic modulus adapts to vibration conditions of rail transit, ships and wind power, resisting cracking and deformation under long-term vibration.

5. Standard Specifications

Size (Width × Height mm): 100×50, 200×100, 300×100, 400×150, 600×200, 800×200
Extrusion thickness: 1.2mm–3.0mm, custom width, height, span length and dividers available upon request.

6. Application Range

Coastal docks, ships, offshore wind power, photovoltaic power stations, high-rise office buildings, airports, data centers, hospital clean areas, exhibition halls, light-corrosion chemical workshops, rail transit, municipal utility tunnels, explosion-proof factories.

7. Matching Accessories

Aluminum cover, splice plate, horizontal elbow, vertical elbow, tee, reducer, divider, aluminum support bracket, upright post, grounding jumper
