FRP Cable Tray / GRP Cable Tray

1. Product Overview

FRP Cable Tray (Full name Fiberglass Reinforced Plastic / GRP Cable Tray) is a non-metallic cable support system pultruded as one piece. It uses alkali-free fiberglass as reinforcement, compounded with unsaturated polyester, vinyl ester or epoxy resin, plus flame retardant and UV stabilizer additives. It is an ideal substitute for steel and aluminum trays, featuring outstanding corrosion resistance, electrical insulation and lightweight flame retardant performance, specially designed for chemical, coastal, sewage, explosion-proof and other harsh corrosive environments.

2. Resin Material Grades by Corrosion Resistance

1. General Polyester FRP Tray
Cost-effective basic grade, resistant to weak acid, alkali and humidity, for ordinary factories, underground parking lots and mild coastal areas.
2. Vinyl Ester FRP Tray
High anti-corrosion grade, withstands strong acid, alkali, chloride ion and seawater salt spray, widely used in electroplating, pharmaceutical, sewage treatment and offshore projects.
3. Flame Retardant & Anti-Static FRP Tray
FV0 flame retardant rating, no spark risk, suitable for gas stations, mines, oil & gas and dust explosion-proof workshops.
4. UV Resistant Weatherproof FRP Tray
Rich resin surface with UV absorber, no chalking or cracking under long-term outdoor sunlight exposure, for photovoltaic power stations and open-air utility tunnels.

3. Four Main Structural Types

1. FRP Solid Channel Cable Tray (Fully Enclosed)
Integrated box shape with snap-on covers, dust-proof, anti-corrosion gas intrusion and anti-electromagnetic interference. Ideal for precision instrument cables, optical fibers and clean chemical workshops.

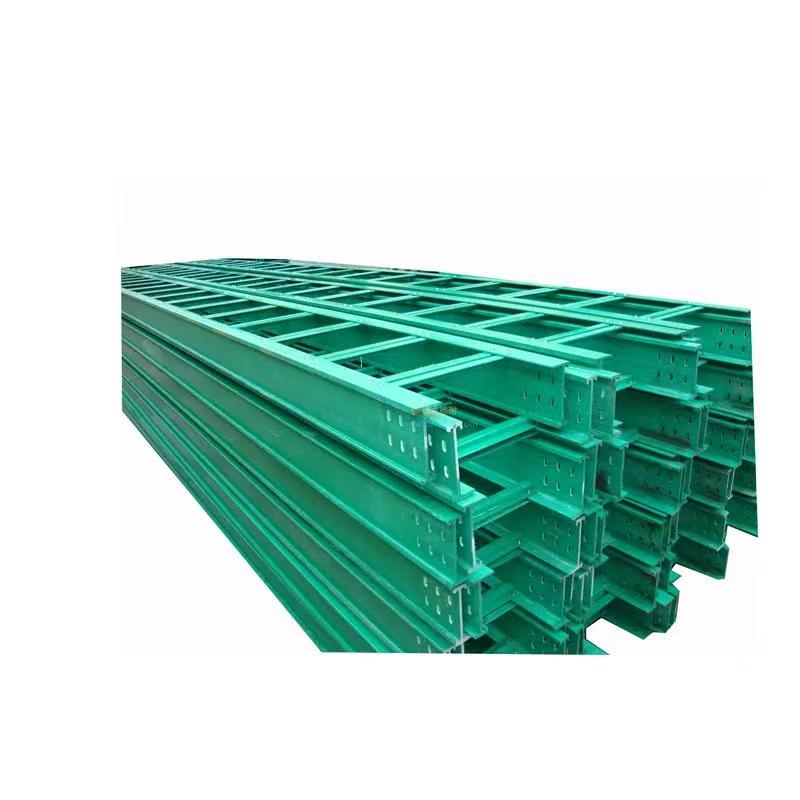

2. FRP Ladder Cable Tray
Open rung structure with optimal ventilation & heat dissipation, ultra-lightweight for large-section high-voltage power cables and long-distance overhead installation in high-temperature workshops.
3. FRP Perforated Tray Cable Tray
Semi-closed base with uniform heat dissipation holes, balancing load bearing and heat dissipation, general use for power cable routing in industrial plants.
4. FRP Long Span Cable Tray
Thickened profile with built-in reinforcing ribs, single unsupported span up to 2–4m, reducing support quantity for large factories and municipal utility tunnels.

4. Core Product Advantages

1. Unmatched chemical corrosion resistance, zero rust risk
Non-metallic material eliminates electrochemical corrosion, resistant to pH 2–12 acid, alkali, salt spray and industrial waste gas. Service life is 3–5 times longer than 304 stainless steel in chloride-rich environments, no regular rust removal or repainting required.
2. Light weight with high strength, lower structural load
Only 1/4 weight of carbon steel tray of same size, easy manual lifting; support spacing can extend to 2–3m to save bracket material and labor cost.
3. Intrinsically non-conductive insulation, zero EMI
Insulation resistance ≥10¹²Ω, no eddy current heating, no signal interference for control cables; no spark hazard for explosion zones, grounding jumper is unnecessary.
4. Flame retardant & fire safe
UL94 V0 flame retardant grade, self-extinguishing when exposed to fire, no molten dripping or toxic heavy metal fume, compliant with fire and explosion protection codes.
5. Long service life with anti-aging performance
Excellent UV and moisture resistance, stable service life over 20 years without chalking or cracking for outdoor & underground applications.
6. Complete matching FRP accessories
Full set of non-metallic fittings including splice plates, elbows, tees, reducers and support arms to maintain consistent anti-corrosion performance of the whole wiring route.

5. Standard Specifications

Size (Width × Height mm): 100×50, 200×100, 300×100, 400×150, 600×200, 800×200
Wall thickness: 3–7mm; standard length 4m per piece, custom width, height, span, dividers and colors (green/grey/blue) available.

6. Application Range

Chemical industrial parks, electroplating plants, pharmaceutical workshops, sewage treatment plants, coastal docks, offshore wind power, seawater desalination stations, oil & gas explosion-proof zones, mine tunnels, photovoltaic power stations, food clean workshops, municipal underground utility tunnels, cross-sea bridges, non-ferrous metal smelters.

7. Matching Accessories

FRP splice plate, FRP cover, horizontal elbow, inner & outer vertical elbow, tee, reducer, divider, FRP support bracket, anti-corrosion stainless steel fasteners, expansion anchors
